glass

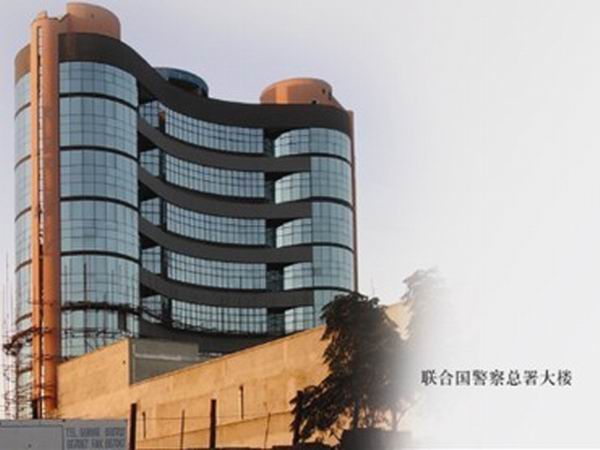

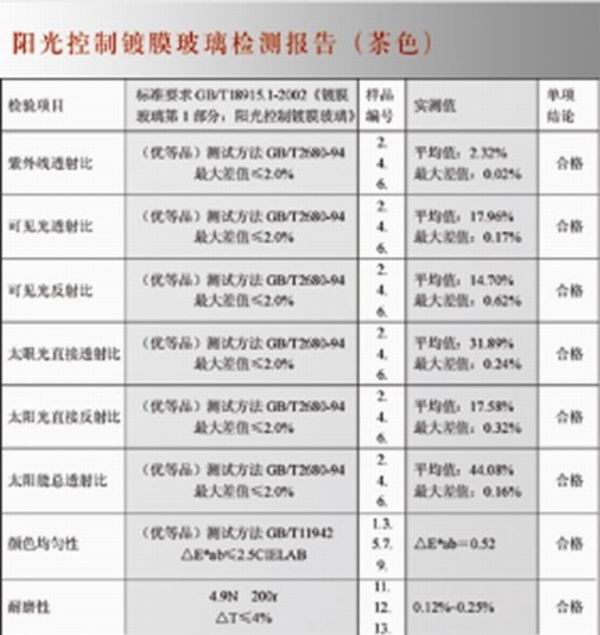

Jingniu Group introduces international advanced on-line coating technology in 90s to produce top grade float glass. The technology (CVD) follows the sediment principle of chemical gases and film is formed inside tin-trough section of float technology under the conditions of stable temperature, unique circumstances and clean surface, chemical gases are continuously and uniformly piped to glass surface via special equipment and decompose there, and crystal silicon film is settled on surface. So high quality coated glass is produced. The fastness and erosion resisting ability of the film is the best among various kinds of coated glass as film and glass is similar in chemical component and common coated glass cannot assimilate its property to on-line coated glass. On-line coated glass is used to make glass screen of skyscraper, building decoration, hollow and interlining glass. The main colour of it is green, blue and grey with high transmitting ratio and reflectance and combines lighting, energy-saving, decoration and environment protection in one. It is an ideal choice and focus embodiment of modern buildings. It passed the test by State Glass Quality Supervision and Test Centre and accords with JC689-1998 standard. Jingniu on-line coated glass will add colourful scenery to your life.
Our company adopts international advanced on-line coating technology and can produce coated glass for various purposes. There are complete specification and kinds.
Coated glass has nice light-operated performance, which is adumbral and has the function of heat protection. Its rich colors and various kinds make the buildings unique and attractive. It can be hot bent and tempered and can also be processed in some other ways.

Product features
1.obvious energy conservation effect
2.rich colors
3.excellent anti-dazzle effect
4.excellent optical performance
  coated glass is sorted as follows:
  4mm:VT-20  VT-25  VT-30 VT-35 VT-40
  5mm:VT-15 VT-20 VT-25 VT-30
  6mm:VT-15 VT-20 VT-25 VT-28

5.excellent chemical stability, acid and alkali resistance

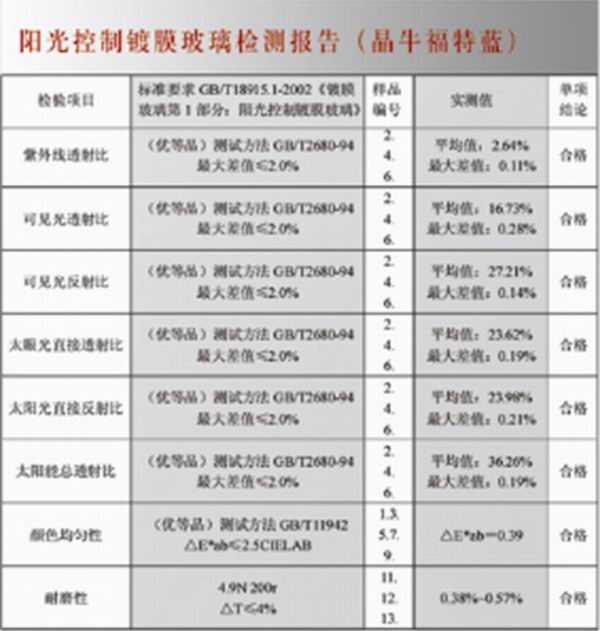

  acid resistance: when dipped in 1NHCl solution for 24 hours at 23℃±2℃, its absolute value of difference between two visible light transmission ratios, measured before and after test, is less than 4%.

  alkali resistance: when dipped in 1NNaOH solution for 24 hours at 23℃±2℃, its absolute value of difference between two visible light transmission ratios, measured before and after test, is less than 4%.

6.film is chemically formed at high temperature with high wearability
  its absolute value of difference between two visible light transmission ratios, measured before and after wear ability test, is less than 4%.

7.High color uniformity, gentle and elegant
  color uniformity: chromatism △E≤3CIELAB
8.it is easy to machine and can be toughened and thermally curved.

<

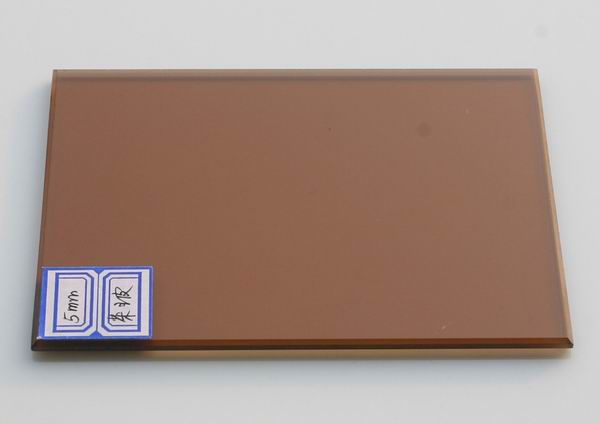

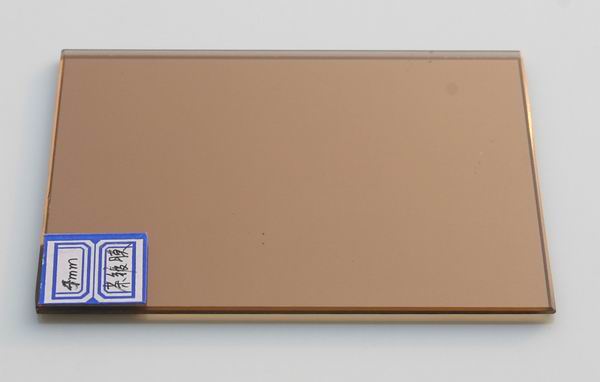

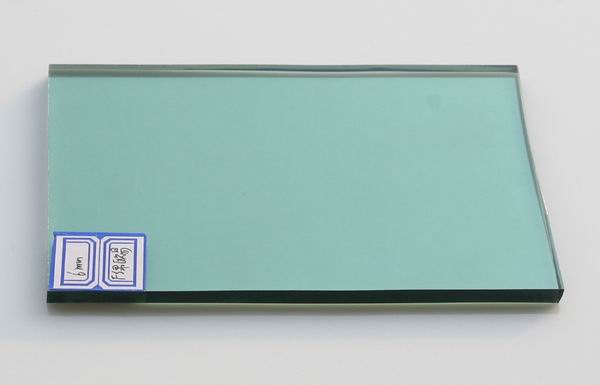

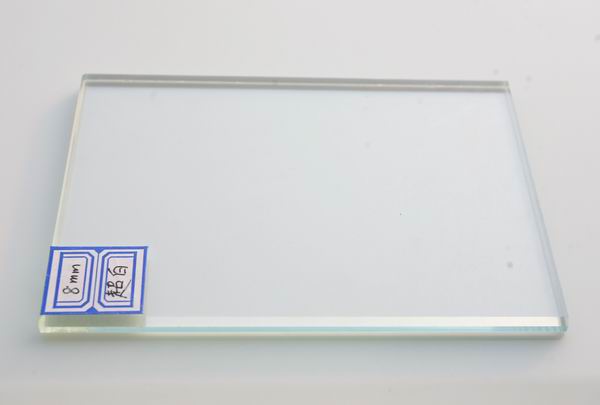

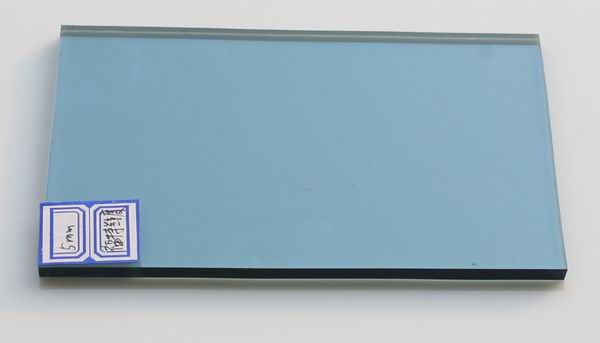

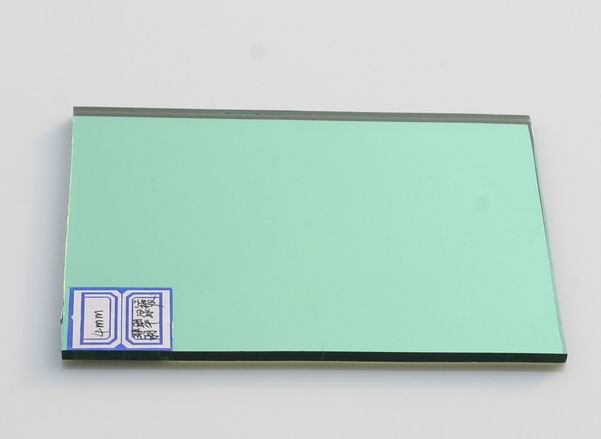

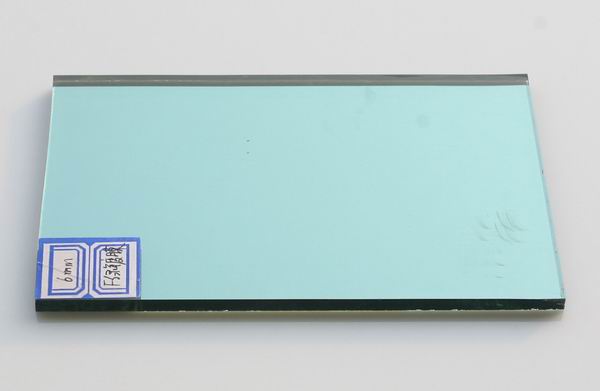

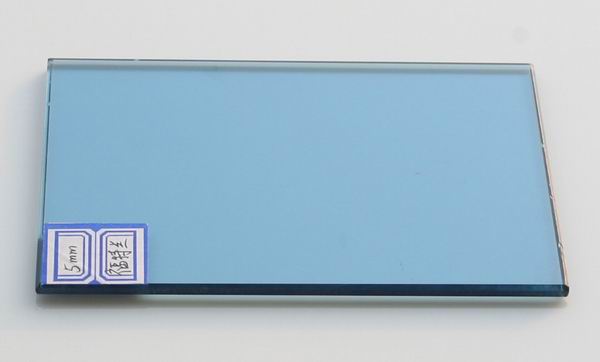

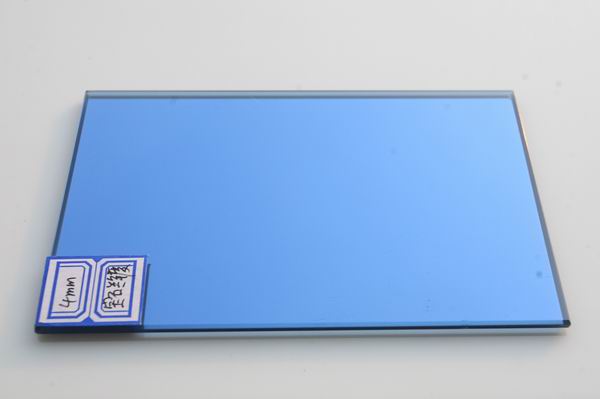

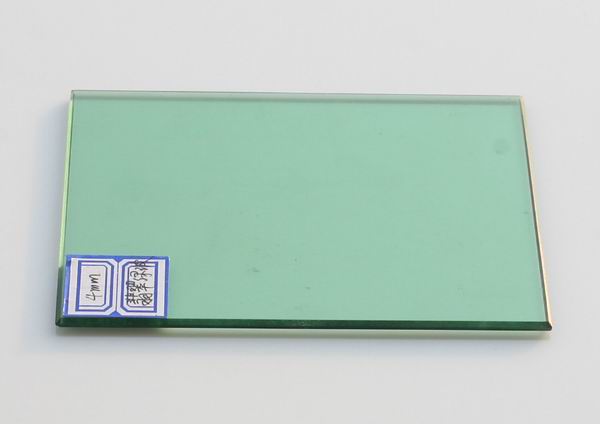

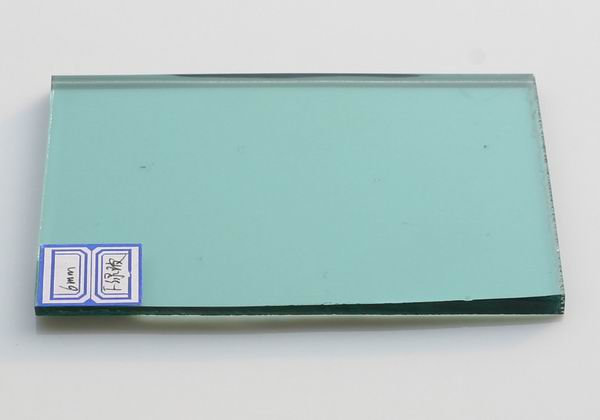

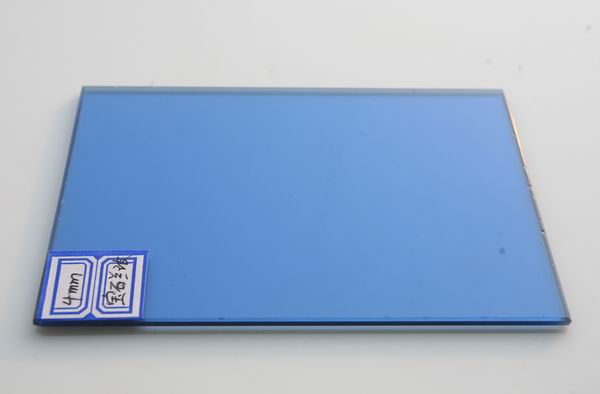

kinds emerald-green, F-green, gem-blue, Korea-green, Korea-blue, Jingniu-grey, Jingniu-brown, crystal-black, dark green, silver-white.
thickness: 4、5、6、8、10、12mm

specification:

1830*2440   1370*2440      2000 ×1500 1650 × 2100 2100×1370  1650 ×2200 1370×2200 1524×2134
2134×3050 2134×3300 2250×3050 2440×3050 2440×3300
